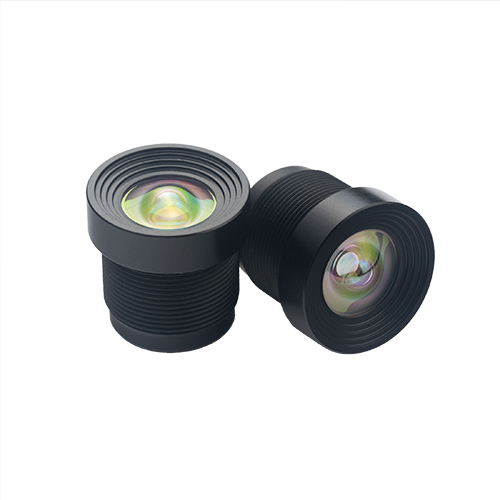

Model No: ABIR02512
Near infrared lens with working wavelength 850nm/940nm, EFL/2.47mm, F/1.2, M12x0.5
The near infrared lens ABIR02512 is a hybrid m12 lenses with working wavelength 850nm/940nm, EFL/2.47mm, F/1.2, designed for up to 1/3'' sensors. The near infrared lens provides a HFOV of 92° and a Max. image circle of 6.4mm.
Quantity :
Time-of-Flight near infrared lens, also known as 3D depth lens, gathers the reflected light and images the environment onto the image sensor (focal plane array), and comes with real-time ranging and is able to obtain object depth information.
The low F-number, thermal stability and compact size make this near infrared lens ideal for measuring distance and volume, Object scanning, Indoor navigation, obstacle avoidance, gesture recognition.
Optical Specifications
Description: near infrared lens ABIR02512
The low F-number, thermal stability and compact size make this near infrared lens ideal for measuring distance and volume, Object scanning, Indoor navigation, obstacle avoidance, gesture recognition.
Optical Specifications
Description: near infrared lens ABIR02512
Mount: M12
Sensor:1/3 inch
Focal Length:2.47mm
F Number: F1.2
BFL: 2.09mm
Horizontal Field of View: 91.8Degrees
Key Features
If you have any questions about our product near infrared lens ABIR02512, please don't hesitate to contact us.
Sensor:1/3 inch
Focal Length:2.47mm
F Number: F1.2
BFL: 2.09mm
Horizontal Field of View: 91.8Degrees
- Typical Working Wavelength: BP850nm or BP940nm
- Low F number
If you have any questions about our product near infrared lens ABIR02512, please don't hesitate to contact us.
