Model No: ABIR07712

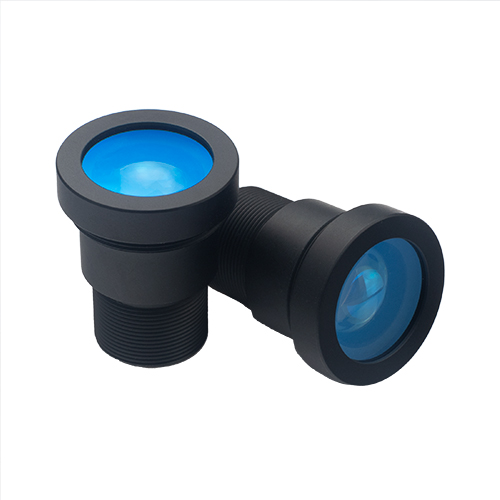

M12 tof lenses with working wavelength 850nm/940nm, EFL/7.76mm, F/1.2, M12x0.5
The M12 tof lenses ABIR07712 is a all glass board lenses with working wavelength 850nm/940nm, EFL/7.76mm, F/1.2, designed for up to 1/2'' sensors. The M12 tof lenses provides a HFOV of 48° and a Max. image circle of 8.4mm.
Quantity :
Time-of-Flight M12 tof lenses, also known as 3D depth lens, gathers the reflected light and images the environment onto the image sensor (focal plane array), and comes with real-time ranging and is able to obtain object depth information.
The low F-number, thermal stability and compact size make this M12 tof lenses ideal for measuring distance and volume, Object scanning, Indoor navigation, obstacle avoidance, gesture recognition.
Optical Specifications
Key Features
If you need more information about our M12 tof lenses， please don't hesitate to contact us.
The low F-number, thermal stability and compact size make this M12 tof lenses ideal for measuring distance and volume, Object scanning, Indoor navigation, obstacle avoidance, gesture recognition.
Optical Specifications
- Description: M12 tof lenses ABIR07712
- Mount: M12
- Sensor:1/2 inch
- Focal Length:7.76mm
- F Number: F1.2
- BFL: 4.37mm
- Horizontal Field of View: 48Degrees
- Typical Working Wavelength: BP850nm or BP940nm;
- Low F number
If you need more information about our M12 tof lenses， please don't hesitate to contact us.
